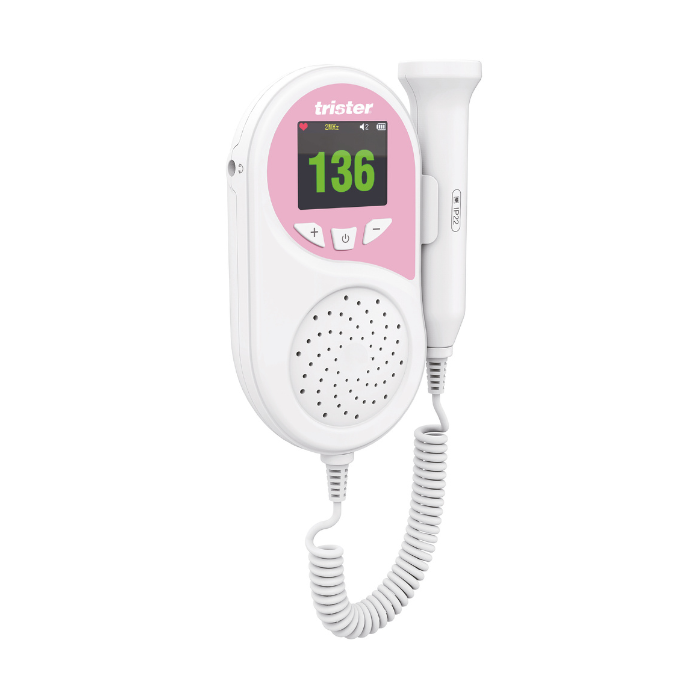

تريستر فيتال دوبلر TS 367F

Trister Fetal Doppler is a compact and user-friendly device that offers real-time monitoring and assurance of the Fetal Heart Rate (FHR). Simple design with 3-button operation makes it easy to use and listen to Fetal Heart Rate with the option to listen through either earphones or a speaker.

Features :

• Highly Sensitive Probe üIntelligent Noise Reduction
• Digits/Rhythm Display
• Clear Fetal Heart Sound
• Couplant Ultrasound Gel Included

How to Use :

• Turn On: Insert the batteries and press the Power on button.
• Apply Lubricant: Apply a small amount of Couplant / Lubricant gel to the Probe.
• Feel The Rhythm : Angle or tilt the probe, keeping contact between your skin and the probe at all times, until you hear the fetal heart rate.

Technical Specifications :

• Display : 1.77” LCD Screen
• FHR measurement and display range : 50 bpm˜240 bpm
• Accuracy  : ±2 bpm
• Rated Working Voltage : DC3 V
• Battery Type  : Two 1.5V batteries
• Dimension : 216*142*72mm
• Product Weight : <300g
• Output  : Speaker (or) Headphones (optional)

Operating Conditions :

• Temperature : + 5 °C ~ + 40 °C
• Humidity :  ≤ 80%
• Atmospheric Pressure : 70 kPa~l06 kPa

Transport and Storage :

• Temperature : -10 °C ~ + 55 °C
• Humidity :  ≤ 93%
• Atmospheric Pressure : 50 kPa~l06 kPa

Includes  : Fetal Doppler Device, 2* AA Batteries, Pouch, User Manual, Couplant Gel 40ml

Caution : Trister Fetal Doppler is a handheld device for FHR detecting purpose, it cannot take the place of routine pregnancy check-up or fetal monitoring. The device should not be used in life supporting or life sustaining application areas. The device cannot replace the professional fetal monitor. If the fetal heart rate is abnormal, the fetal heart rate cannot be found, or fetal movement cannot be felt, pregnant women should seek medical attention promptly.
